KAF67減速機配電機重量：

KAF67減速機配0.18KW電機重量42KG，KAF67減速機配0.25KW電機重量46KG，KAF67減速機配0.37KW電機重量46.5KG，KAF67減速機配0.55KW電機重量51KG，KAF67減速機配0.75KW電機重量43KG，KAF67減速機配1.1KW電機重量56KG，KAF67減速機配1.5KW電機重量59KG，KAF67減速機配2.2KW電機重量69KG，KAF67減速機配3KW電機重量71KG，KAF67減速機配4KW電機重量82KG，KAF67減速機配5.5KW電機重量96KG。直角減速機

KAF67減速機加油量：可加齒輪潤滑油

KAF67減速機M4安裝加3.6升，KAF67減速機M3安裝加2.7升，KAF67減速機M2安裝加2.4升，KAF67減速機M1安裝加1.1升，KAF67減速機M5安裝加2.6升，KAF67減速機M6安裝加2.6升。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

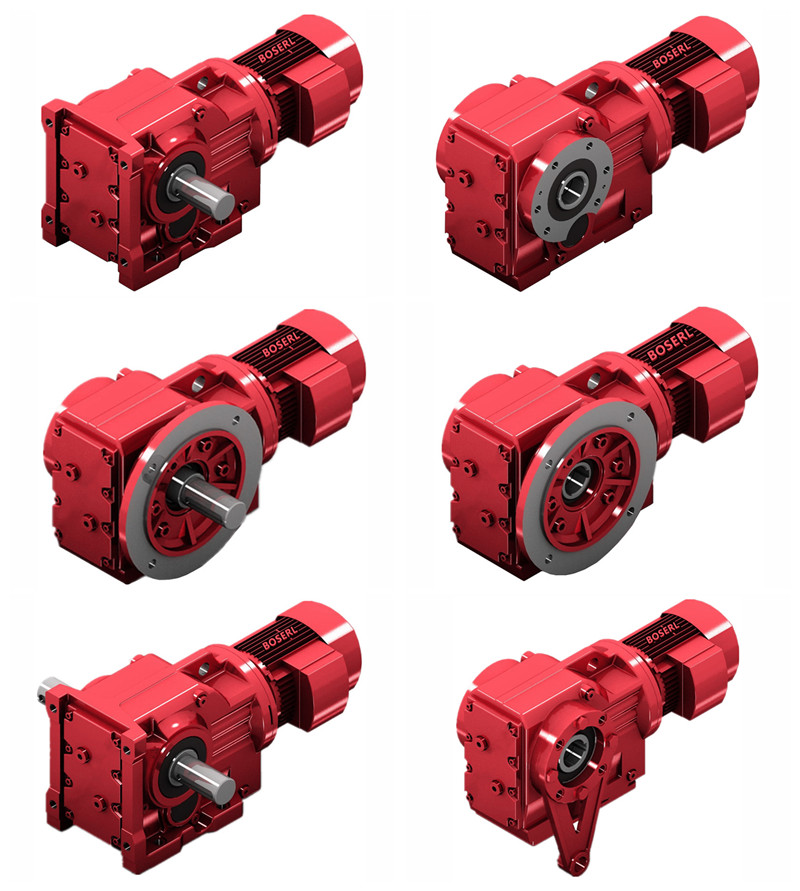

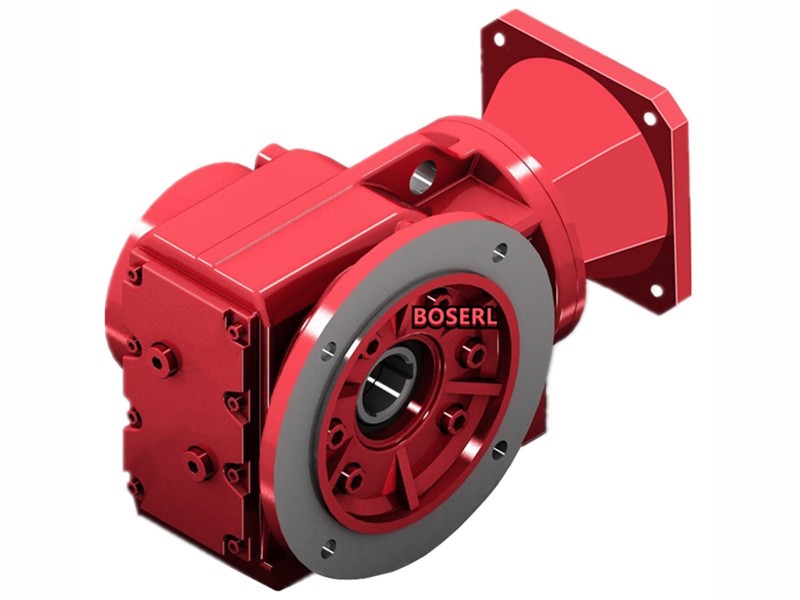

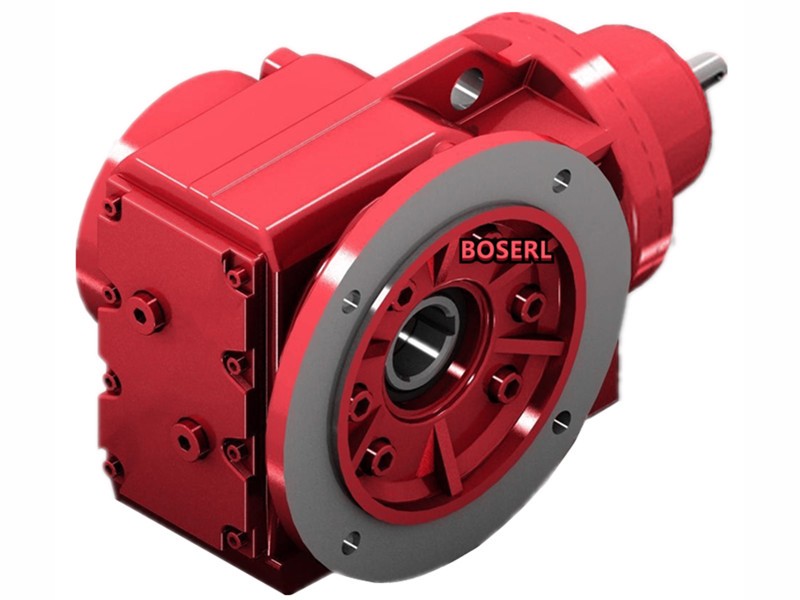

KAF67減速機實物圖：圖一為KAF67立式安裝直角空心軸螺旋錐齒輪減速機，圖二K67臥式安裝螺旋錐齒輪減速電機，圖三為KF67立式安裝實心軸輸出螺旋錐齒輪減速電機，圖四為KA67臥式安裝空心軸螺旋錐齒輪減速機。

KAF67減速機型號表示方法：

KAF67減速機型號結構KAF67-B2.2KW-4P-減速比-安裝形式-接線盒位置。

KAF67減速機性能參數表結構說明：Input Configuration代表輸入配置，C防雨罩，V強制冷卻風扇，RS逆止器，TF電機熱保護裝置，KAF67、K67、KF67、KA67減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置與自鎖功能。二級減速機

KAF67減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KAF67減速機參數：

KAF67減速機輸出扭矩820N.m，780N.m，760N.m，740N.m，700N.m，670N.m，530N.m，500N.m，480N.m，440N.m，420N.m，350N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KAF67減速機減速比144.79比，123.54比，108.03比，102.62比，90.04比，76.37比，68.95比，60.66比，57.28比，48.77比，44.32比，38.39比，35.62比，30.22比，27.28比，24比，22.66比，19.3比，17.54比，15.19比，13.22比，12.48比，10.63比，9.66比，8.37比，7.28比，5.2比

KAF67減速機輸出轉數9.7轉，11轉，13轉，14轉，16轉，18轉，20轉，23轉，24轉，29轉，32轉，36轉，39轉，46轉，51轉，58轉，62轉，73轉，80轉，92轉，106轉，112轉，132轉，145轉，167轉，192轉，269轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KAF67減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機KAF67配0.18KW，KAF67配0.25KW，KAF67配0.37KW，KAF67配0.55KW，KAF67配0.75KW，KAF67配1.1KW，KAF67配1.5KW，KAF67配2.2KW，KAF67配3KW，KAF67配4KW，KAF67配5.5KW。

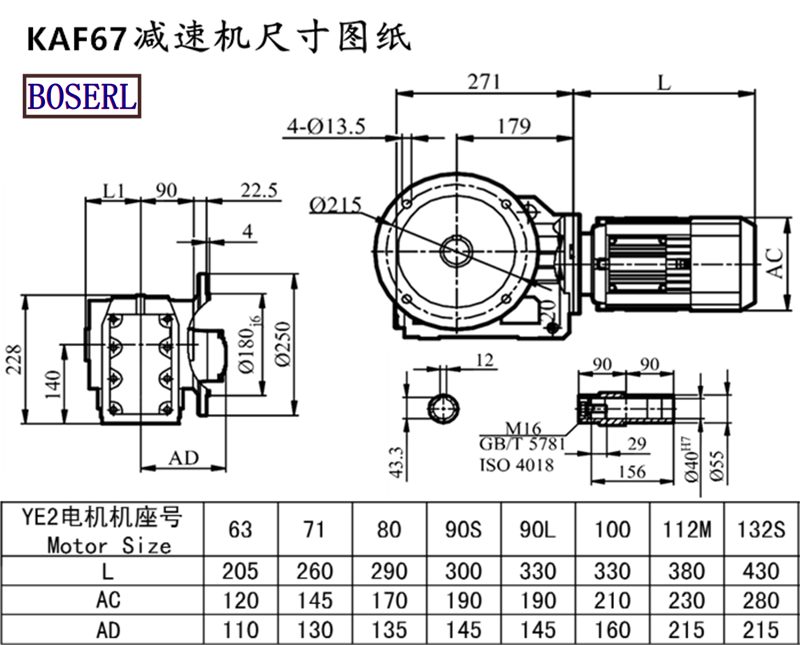

KAF67減速機外觀尺寸：輸出孔尺寸Φ40+鍵3.3（可定做），高228*寬199.5（帶輸出法蘭）*長273

KAF67減速機型號：KAF67AQA80,KAF67AQA100,KAF67AQA115,KAF67AQA140,KAF67AQA160,KAF67AQA190,KAF67AQH80,KAF67AQH100,KAF67AQH115,KAF67AQH140,KAF67AQH160,KAF67AQH190,JRTKAF67-Y0.18KW,JRTKAF67-Y0.25KW,JRTKAF67-Y0.37KW,JRTKAF67-Y0.55KW,JRTKAF67-Y0.75KW,JRTKAF67-Y1.1KW,JRTKAF67-Y1.5KW,JRTKAF67-Y100M4,JRTKAF67-Y112M4,JRTKAF67-Y2.2KW,JRTKAF67-Y3KW,JRTKAF67-Y4KW,JRTKAF67-Y5.5KW,JRTKAF67-Y63M4,JRTKAF67-Y71M4,JRTKAF67-Y80M4,JRTKAF67-Y90M4,JRTKAF67-YEJ100M4,JRTKAF67-YEJ112M4,JRTKAF67-YEJ132M4,JRTKAF67-YEJ63M4,JRTKAF67-YEJ71M4,JRTKAF67-YEJ80M4,JRTKAF67-YEJ90M4,JRTKAF67-YS100M4,JRTKAF67-YS112M4,JRTKAF67-YS132M4,JRTKAF67-YS63M4,JRTKAF67-YS71M4,JRTKAF67-YS80M4,JRTKAF67-YS90M4,JRTKAF67-YVP100M4,JRTKAF67-YVP112M4,JRTKAF67-YVP132M4,JRTKAF67-YVP63M4,JRTKAF67-YVP71M4,JRTKAF67-YVP80M4,JRTKAF67-YVP90M4,JRTKAF67-YVPEJ100M4,JRTKAF67-YVPEJ112M4,JRTKAF67-YVPEJ132M4,JRTKAF67-YVPEJ63M4,JRTKAF67-YVPEJ71M4,JRTKAF67-YVPEJ80M4,JRTKAF67-YVPEJ90M4,EWKAF67-Y0.18KW,EWKAF67-Y0.25KW,EWKAF67-Y0.37KW,EWKAF67-Y0.55KW,EWKAF67-Y0.75KW,EWKAF67-Y1.1KW,EWKAF67-Y1.5KW,EWKAF67-Y100M4,EWKAF67-Y112M4,EWKAF67-Y2.2KW,EWKAF67-Y3KW,EWKAF67-Y4KW,EWKAF67-Y5.5KW,EWKAF67-Y63M4,EWKAF67-Y71M4,EWKAF67-Y80M4,EWKAF67-Y90M4,EWKAF67-YEJ100M4,EWKAF67-YEJ112M4,EWKAF67-YEJ132M4,EWKAF67-YEJ63M4,EWKAF67-YEJ71M4,EWKAF67-YEJ80M4,EWKAF67-YEJ90M4,EWKAF67-YS100M4,EWKAF67-YS112M4,EWKAF67-YS132M4,EWKAF67-YS63M4,EWKAF67-YS71M4,EWKAF67-YS80M4,EWKAF67-YS90M4,EWKAF67-YVP100M4,EWKAF67-YVP112M4,EWKAF67-YVP132M4,EWKAF67-YVP63M4,EWKAF67-YVP71M4,EWKAF67-YVP80M4,EWKAF67-YVP90M4,EWKAF67-YVPEJ100M4,EWKAF67-YVPEJ112M4,EWKAF67-YVPEJ132M4,EWKAF67-YVPEJ63M4,EWKAF67-YVPEJ71M4,EWKAF67-YVPEJ80M4,EWKAF67-YVPEJ90M4,SLKAF67-Y0.18KW,SLKAF67-Y0.25KW,SLKAF67-Y0.37KW,SLKAF67-Y0.55KW,SLKAF67-Y0.75KW,SLKAF67-Y1.1KW,SLKAF67-Y1.5KW,SLKAF67-Y100M4,SLKAF67-Y112M4,SLKAF67-Y2.2KW,SLKAF67-Y3KW,SLKAF67-Y4KW,SLKAF67-Y5.5KW,SLKAF67-Y63M4,SLKAF67-Y71M4,SLKAF67-Y80M4,SLKAF67-Y90M4,SLKAF67-YEJ100M4,SLKAF67-YEJ112M4,SLKAF67-YEJ132M4,SLKAF67-YEJ63M4,SLKAF67-YEJ71M4,SLKAF67-YEJ80M4,SLKAF67-YEJ90M4,SLKAF67-YS100M4,SLKAF67-YS112M4,SLKAF67-YS132M4,SLKAF67-YS63M4,SLKAF67-YS71M4,SLKAF67-YS80M4,SLKAF67-YS90M4,SLKAF67-YVP100M4,SLKAF67-YVP112M4,SLKAF67-YVP132M4,SLKAF67-YVP63M4,SLKAF67-YVP71M4,SLKAF67-YVP80M4,SLKAF67-YVP90M4,SLKAF67-YVPEJ100M4,SLKAF67-YVPEJ112M4,SLKAF67-YVPEJ132M4,SLKAF67-YVPEJ63M4,SLKAF67-YVPEJ71M4,SLKAF67-YVPEJ80M4,SLKAF67-YVPEJ90M4,DSZKAF67-Y0.18KW,DSZKAF67-Y0.25KW,DSZKAF67-Y0.37KW,DSZKAF67-Y0.55KW,DSZKAF67-Y0.75KW,DSZKAF67-Y1.1KW,DSZKAF67-Y1.5KW,DSZKAF67-Y100M4,DSZKAF67-Y112M4,DSZKAF67-Y2.2KW,DSZKAF67-Y3KW,DSZKAF67-Y4KW,DSZKAF67-Y5.5KW,DSZKAF67-Y63M4,DSZKAF67-Y71M4,DSZKAF67-Y80M4,DSZKAF67-Y90M4,DSZKAF67-YEJ100M4,DSZKAF67-YEJ112M4,DSZKAF67-YEJ132M4,DSZKAF67-YEJ63M4,DSZKAF67-YEJ71M4,DSZKAF67-YEJ80M4,DSZKAF67-YEJ90M4,DSZKAF67-YS100M4,DSZKAF67-YS112M4,DSZKAF67-YS132M4,DSZKAF67-YS63M4,DSZKAF67-YS71M4,DSZKAF67-YS80M4,DSZKAF67-YS90M4,DSZKAF67-YVP100M4,DSZKAF67-YVP112M4,DSZKAF67-YVP132M4,DSZKAF67-YVP63M4,DSZKAF67-YVP71M4,DSZKAF67-YVP80M4,DSZKAF67-YVP90M4,DSZKAF67-YVPEJ100M4,DSZKAF67-YVPEJ112M4,DSZKAF67-YVPEJ132M4,DSZKAF67-YVPEJ63M4,DSZKAF67-YVPEJ71M4,DSZKAF67-YVPEJ80M4,DSZKAF67-YVPEJ90M4,BKAF67-Y0.18KW,BKAF67-Y0.25KW,BKAF67-Y0.37KW,BKAF67-Y0.55KW,BKAF67-Y0.75KW,BKAF67-Y1.1KW,BKAF67-Y1.5KW,BKAF67-Y100M4,BKAF67-Y112M4,BKAF67-Y2.2KW,BKAF67-Y3KW,BKAF67-Y4KW,BKAF67-Y5.5KW,BKAF67-Y63M4,BKAF67-Y71M4,BKAF67-Y80M4,BKAF67-Y90M4,BKAF67-YEJ100M4,BKAF67-YEJ112M4,BKAF67-YEJ132M4,BKAF67-YEJ63M4,BKAF67-YEJ71M4,BKAF67-YEJ80M4,BKAF67-YEJ90M4,BKAF67-YS100M4,BKAF67-YS112M4,BKAF67-YS132M4,BKAF67-YS63M4,BKAF67-YS71M4,BKAF67-YS80M4,BKAF67-YS90M4,BKAF67-YVP100M4,BKAF67-YVP112M4,BKAF67-YVP132M4,BKAF67-YVP63M4,BKAF67-YVP71M4,BKAF67-YVP80M4,BKAF67-YVP90M4,BKAF67-YVPEJ100M4,BKAF67-YVPEJ112M4,BKAF67-YVPEJ132M4,BKAF67-YVPEJ63M4,BKAF67-YVPEJ71M4,BKAF67-YVPEJ80M4,BKAF67-YVPEJ90M4,GKAF67-Y0.18KW,GKAF67-Y0.25KW,GKAF67-Y0.37KW,GKAF67-Y0.55KW,GKAF67-Y0.75KW,GKAF67-Y1.1KW,GKAF67-Y1.5KW,GKAF67-Y100M4,GKAF67-Y112M4,GKAF67-Y2.2KW,GKAF67-Y3KW,GKAF67-Y4KW,GKAF67-Y5.5KW,GKAF67-Y63M4,GKAF67-Y71M4,GKAF67-Y80M4,GKAF67-Y90M4,GKAF67-YEJ100M4,GKAF67-YEJ112M4,GKAF67-YEJ132M4,GKAF67-YEJ63M4,GKAF67-YEJ71M4,GKAF67-YEJ80M4,GKAF67-YEJ90M4,GKAF67-YS100M4,GKAF67-YS112M4,GKAF67-YS132M4,GKAF67-YS63M4,GKAF67-YS71M4,GKAF67-YS80M4,GKAF67-YS90M4,GKAF67-YVP100M4,GKAF67-YVP112M4,GKAF67-YVP132M4,GKAF67-YVP63M4,GKAF67-YVP71M4,GKAF67-YVP80M4,GKAF67-YVP90M4,GKAF67-YVPEJ100M4,GKAF67-YVPEJ112M4,GKAF67-YVPEJ132M4,GKAF67-YVPEJ63M4,GKAF67-YVPEJ71M4,GKAF67-YVPEJ80M4,GKAF67-YVPEJ90M4,KCAF67-Y0.18KW,KCAF67-Y0.25KW,KCAF67-Y0.37KW,KCAF67-Y0.55KW,KCAF67-Y0.75KW,KCAF67-Y1.1KW,KCAF67-Y1.5KW,KCAF67-Y100M4,KCAF67-Y112M4,KCAF67-Y2.2KW,KCAF67-Y3KW,KCAF67-Y4KW,KCAF67-Y5.5KW,KCAF67-Y63M4,KCAF67-Y71M4,KCAF67-Y80M4,KCAF67-Y90M4,KCAF67-YEJ100M4,KCAF67-YEJ112M4,KCAF67-YEJ132M4,KCAF67-YEJ63M4,KCAF67-YEJ71M4,KCAF67-YEJ80M4,KCAF67-YEJ90M4,KCAF67-YS100M4,KCAF67-YS112M4,KCAF67-YS132M4,KCAF67-YS63M4,KCAF67-YS71M4,KCAF67-YS80M4,KCAF67-YS90M4,KCAF67-YVP100M4,KCAF67-YVP112M4,KCAF67-YVP132M4,KCAF67-YVP63M4,KCAF67-YVP71M4,KCAF67-YVP80M4,KCAF67-YVP90M4,KCAF67-YVPEJ100M4,KCAF67-YVPEJ112M4,KCAF67-YVPEJ132M4,KCAF67-YVPEJ63M4,KCAF67-YVPEJ71M4,KCAF67-YVPEJ80M4,KCAF67-YVPEJ90M4,MTJAF67-Y0.18KW,MTJAF67-Y0.25KW,MTJAF67-Y0.37KW,MTJAF67-Y0.55KW,MTJAF67-Y0.75KW,MTJAF67-Y1.1KW,MTJAF67-Y1.5KW,MTJAF67-Y100M4,MTJAF67-Y112M4,MTJAF67-Y2.2KW,MTJAF67-Y3KW,MTJAF67-Y4KW,MTJAF67-Y5.5KW,MTJAF67-Y63M4,MTJAF67-Y71M4,MTJAF67-Y80M4,MTJAF67-Y90M4,MTJAF67-YEJ100M4,MTJAF67-YEJ112M4,MTJAF67-YEJ132M4,MTJAF67-YEJ63M4,MTJAF67-YEJ71M4,MTJAF67-YEJ80M4,MTJAF67-YEJ90M4,MTJAF67-YS100M4,MTJAF67-YS112M4,MTJAF67-YS132M4,MTJAF67-YS63M4,MTJAF67-YS71M4,MTJAF67-YS80M4,MTJAF67-YS90M4,MTJAF67-YVP100M4,MTJAF67-YVP112M4,MTJAF67-YVP132M4,MTJAF67-YVP63M4,MTJAF67-YVP71M4,MTJAF67-YVP80M4,MTJAF67-YVP90M4,MTJAF67-YVPEJ100M4,MTJAF67-YVPEJ112M4,MTJAF67-YVPEJ132M4,MTJAF67-YVPEJ63M4,MTJAF67-YVPEJ71M4,MTJAF67-YVPEJ80M4,MTJAF67-YVPEJ90M4,WXKAF67-WSS0.18KW,WXKAF67-WSS0.25KW,WXKAF67-WSS0.37KW,WXKAF67-WSS0.55KW,WXKAF67-WSS0.75KW,WXKAF67-WSS1.1KW,WXKAF67-WSS1.5KW,WXKAF67-WSS100M4,WXKAF67-WSS112M4,WXKAF67-WSS2.2KW,WXKAF67-WSS3KW,WXKAF67-WSS4KW,WXKAF67-WSS5.5KW,WXKAF67-WSS63M4,WXKAF67-WSS71M4,WXKAF67-WSS80M4,WXKAF67-WSS90M4,WXKAF67-WSSB100M4,WXKAF67-WSSB112M4,WXKAF67-WSSB132M4,WXKAF67-WSSB63M4,WXKAF67-WSSB71M4,WXKAF67-WSSB80M4,WXKAF67-WSSB90M4,WXKAF67-WSSVP100M4,WXKAF67-WSSVP112M4,WXKAF67-WSSVP132M4,WXKAF67-WSSVP63M4,WXKAF67-WSSVP71M4,WXKAF67-WSSVP80M4,WXKAF67-WSSVP90M4,WXKAF67-WSSVPB100M4,WXKAF67-WSSVPB112M4,WXKAF67-WSSVPB132M4,WXKAF67-WSSVPB63M4,WXKAF67-WSSVPB71M4,WXKAF67-WSSVPB80M4,WXKAF67-WSSVPB90M4。

KAF67減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.0571bufa.com/product/list-kafxiliejiansuji-cn.html
