SAF97減速機加電機重量：

SAF97減速機加1.1KW電機重量193KG，SAF97減速機加1.5KW電機重量196KG，SAF97減速機加2.2KW電機重量205KG，SAF97減速機加3KW電機重量208KG，SAF97減速機加4KW電機重量219KG，SAF97減速機加5.5KW電機重量233KG，SAF97減速機加7.5KW電機重量246KG，SAF97減速機加11KW電機重量289KG，SAF97減速機加15KW電機重量309KG，SAF97減速機加18.5KW電機重量345KG，SAF97減速機加22KW電機重量359KG。

SAF97減速機加油量：可加齒輪潤滑油

SAF97減速機M4安裝形式加20.5L，SAF97減速機M3安裝形式加11.4-16L，SAF97減速機M2安裝形式加14L，SAF97減速機M1安裝形式加7L，SAF97減速機M5安裝形式加15.7L，SAF97減速機M6安裝形式加15.7L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

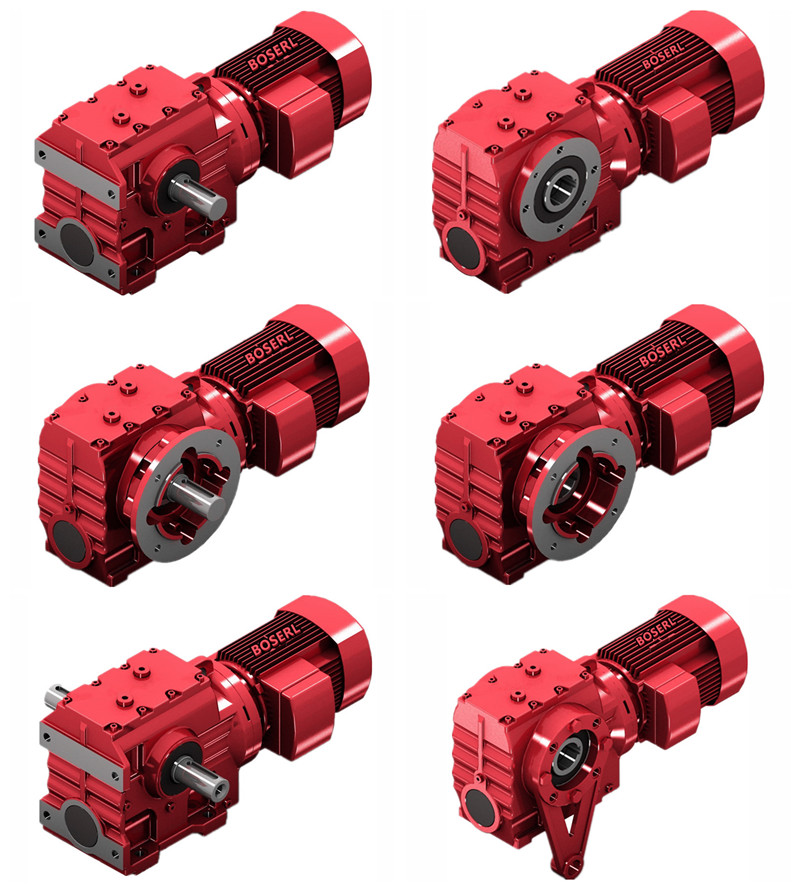

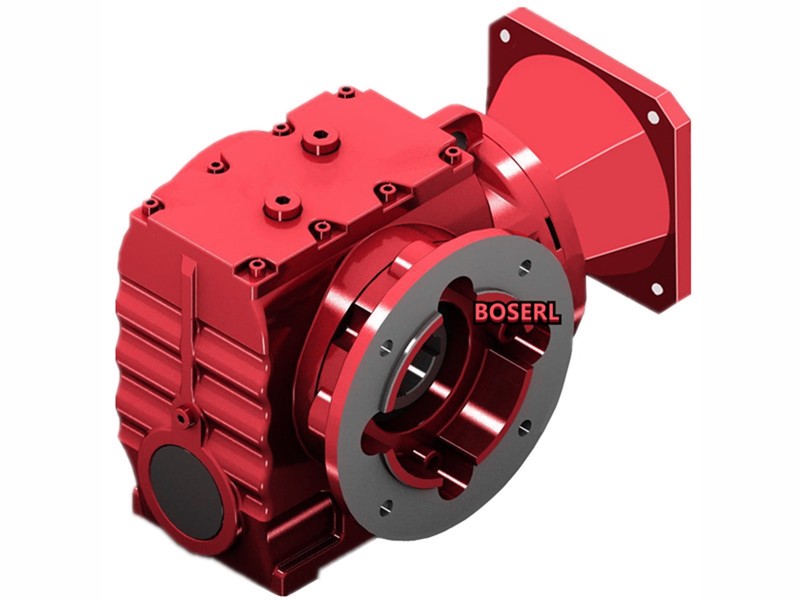

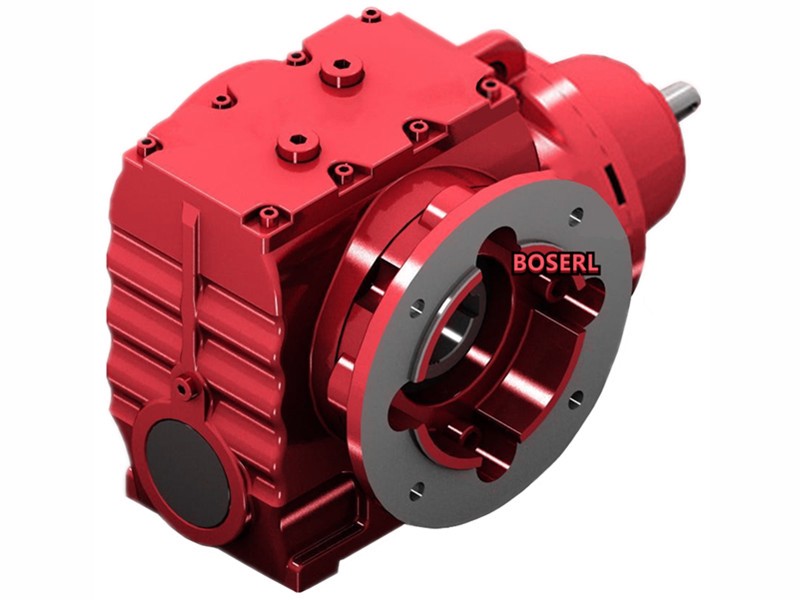

SAF97減速機實物圖：圖一為SAF97立式通孔斜齒輪蝸輪蝸桿減速電機，圖二S97加自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SAF97具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖四為SA97臥式中孔軸斜齒輪減速機。

SAF97減速機型號表示方法：

SAF97減速機型號結構SAF97-B11KW-4P-減速比-安裝形式-接線盒位置。

SAF97減速機性能參數表結構說明：Frame size代表基座規格，K代表服務系數，T扭力臂，E編碼器，HF手動釋放裝置加自鎖功能，TF電機熱保護裝置，SAF97，S97，SF97，SA97減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。

SAF97減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝形式，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。自鎖減速機

SAF97減速機參數：

SAF97減速機輸出扭矩1770N.m，2040N.m，2210N.m，2330N.m，2470N.m，2570N.m，2600N.m，2870N.m，2900N.m，3010N.m，3080N.m，3200N.m，3230N.m，3240N.m，3300N.m，3300N.m，3440N.m，3510N.m，3650N.m，3730N.m，3840N.m，3920N.m，4000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

SAF97減速機減速比286.4比，262.22比，231.67比，196.52比，180.95比，161.74比，145.6比，131.85比，116.92比，105.71比，89.6比，80.85比，78.26比，71.43比，65.45比，60.59比，55.79比，49.87比，44.89比，40.65比，36.05比，32.6比，27.63比，26.39比，24.13比，23.59比，21.23比，19.23比，17.05比，15.42比，13.07比，11.41比，9.55比，8.26比

SAF97減速機輸出轉數4.9轉，5.3轉，6轉，7.1轉，7.7轉，8.7轉，9.6轉，11轉，12轉，13轉，16轉，17轉，18轉，20轉，21轉，23轉，25轉，28轉，31轉，34轉，39轉，43轉，51轉，53轉，58轉，59轉，66轉，73轉，82轉，91轉，107轉，123轉，147轉，169轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SAF97減速機電機可加三相，直流，變頻，剎車，防爆，伺服，交流，單相電機SAF97加1.1KW，SAF97加1.5KW，SAF97加2.2KW，SAF97加3KW，SAF97加4KW，SAF97加5.5KW，SAF97加7.5KW，SAF97加11KW，SAF97加15KW，SAF97加18.5KW，SAF97加22KW。

SAF97減速機外觀尺寸：輸出孔直徑Φ90+鍵5.4（可定做），高455*寬350（帶輸出法蘭）*長420

SAF97減速機型號：

SAF97AQA80,SAF97AQA100,SAF97AQA115,SAF97AQA140,SAF97AQA160,SAF97AQA190,SAF97AQH80,SAF97AQH100,SAF97AQH115,SAF97AQH140,SAF97AQH160,SAF97AQH190,JRTSAF97-Y1.1KW,JRTSAF97-Y1.5KW,JRTSAF97-Y100M4,JRTSAF97-Y112M4,JRTSAF97-Y11KW,JRTSAF97-Y132M4,JRTSAF97-Y15KW,JRTSAF97-Y160M4,JRTSAF97-Y18.5KW,JRTSAF97-Y180M4,JRTSAF97-Y2.2KW,JRTSAF97-Y200M4,JRTSAF97-Y22KW,JRTSAF97-Y3KW,JRTSAF97-Y4KW,JRTSAF97-Y5.5KW,JRTSAF97-Y7.5KW,JRTSAF97-Y80M4,JRTSAF97-Y90M4,JRTSAF97-YEJ100M4,JRTSAF97-YEJ112M4,JRTSAF97-YEJ132M4,JRTSAF97-YEJ160M4,JRTSAF97-YEJ180M4,JRTSAF97-YEJ200M4,JRTSAF97-YEJ80M4,JRTSAF97-YEJ90M4,JRTSAF97-YS100M4,JRTSAF97-YS112M4,JRTSAF97-YS132M4,JRTSAF97-YS160M4,JRTSAF97-YS180M4,JRTSAF97-YS200M4,JRTSAF97-YS80M4,JRTSAF97-YS90M4,JRTSAF97-YVP100M4,JRTSAF97-YVP112M4,JRTSAF97-YVP132M4,JRTSAF97-YVP160M4,JRTSAF97-YVP180M4,JRTSAF97-YVP200M4,JRTSAF97-YVP80M4,JRTSAF97-YVP90M4,JRTSAF97-YVPEJ100M4,JRTSAF97-YVPEJ112M4,JRTSAF97-YVPEJ132M4,JRTSAF97-YVPEJ160M4,JRTSAF97-YVPEJ180M4,JRTSAF97-YVPEJ200M4,JRTSAF97-YVPEJ80M4,JRTSAF97-YVPEJ90M4,EWSAF97-Y1.1KW,EWSAF97-Y1.5KW,EWSAF97-Y100M4,EWSAF97-Y112M4,EWSAF97-Y11KW,EWSAF97-Y132M4,EWSAF97-Y15KW,EWSAF97-Y160M4,EWSAF97-Y18.5KW,EWSAF97-Y180M4,EWSAF97-Y2.2KW,EWSAF97-Y200M4,EWSAF97-Y22KW,EWSAF97-Y3KW,EWSAF97-Y4KW,EWSAF97-Y5.5KW,EWSAF97-Y7.5KW,EWSAF97-Y80M4,EWSAF97-Y90M4,EWSAF97-YEJ100M4,EWSAF97-YEJ112M4,EWSAF97-YEJ132M4,EWSAF97-YEJ160M4,EWSAF97-YEJ180M4,EWSAF97-YEJ200M4,EWSAF97-YEJ80M4,EWSAF97-YEJ90M4,EWSAF97-YS100M4,EWSAF97-YS112M4,EWSAF97-YS132M4,EWSAF97-YS160M4,EWSAF97-YS180M4,EWSAF97-YS200M4,EWSAF97-YS80M4,EWSAF97-YS90M4,EWSAF97-YVP100M4,EWSAF97-YVP112M4,EWSAF97-YVP132M4,EWSAF97-YVP160M4,EWSAF97-YVP180M4,EWSAF97-YVP200M4,EWSAF97-YVP80M4,EWSAF97-YVP90M4,EWSAF97-YVPEJ100M4,EWSAF97-YVPEJ112M4,EWSAF97-YVPEJ132M4,EWSAF97-YVPEJ160M4,EWSAF97-YVPEJ180M4,EWSAF97-YVPEJ200M4,EWSAF97-YVPEJ80M4,EWSAF97-YVPEJ90M4,SLSAF97-Y1.1KW,SLSAF97-Y1.5KW,SLSAF97-Y100M4,SLSAF97-Y112M4,SLSAF97-Y11KW,SLSAF97-Y132M4,SLSAF97-Y15KW,SLSAF97-Y160M4,SLSAF97-Y18.5KW,SLSAF97-Y180M4,SLSAF97-Y2.2KW,SLSAF97-Y200M4,SLSAF97-Y22KW,SLSAF97-Y3KW,SLSAF97-Y4KW,SLSAF97-Y5.5KW,SLSAF97-Y7.5KW,SLSAF97-Y80M4,SLSAF97-Y90M4,SLSAF97-YEJ100M4,SLSAF97-YEJ112M4,SLSAF97-YEJ132M4,SLSAF97-YEJ160M4,SLSAF97-YEJ180M4,SLSAF97-YEJ200M4,SLSAF97-YEJ80M4,SLSAF97-YEJ90M4,SLSAF97-YS100M4,SLSAF97-YS112M4,SLSAF97-YS132M4,SLSAF97-YS160M4,SLSAF97-YS180M4,SLSAF97-YS200M4,SLSAF97-YS80M4,SLSAF97-YS90M4,SLSAF97-YVP100M4,SLSAF97-YVP112M4,SLSAF97-YVP132M4,SLSAF97-YVP160M4,SLSAF97-YVP180M4,SLSAF97-YVP200M4,SLSAF97-YVP80M4,SLSAF97-YVP90M4,SLSAF97-YVPEJ100M4,SLSAF97-YVPEJ112M4,SLSAF97-YVPEJ132M4,SLSAF97-YVPEJ160M4,SLSAF97-YVPEJ180M4,SLSAF97-YVPEJ200M4,SLSAF97-YVPEJ80M4,SLSAF97-YVPEJ90M4,DSZSAF97-Y1.1KW,DSZSAF97-Y1.5KW,DSZSAF97-Y100M4,DSZSAF97-Y112M4,DSZSAF97-Y11KW,DSZSAF97-Y132M4,DSZSAF97-Y15KW,DSZSAF97-Y160M4,DSZSAF97-Y18.5KW,DSZSAF97-Y180M4,DSZSAF97-Y2.2KW,DSZSAF97-Y200M4,DSZSAF97-Y22KW,DSZSAF97-Y3KW,DSZSAF97-Y4KW,DSZSAF97-Y5.5KW,DSZSAF97-Y7.5KW,DSZSAF97-Y80M4,DSZSAF97-Y90M4,DSZSAF97-YEJ100M4,DSZSAF97-YEJ112M4,DSZSAF97-YEJ132M4,DSZSAF97-YEJ160M4,DSZSAF97-YEJ180M4,DSZSAF97-YEJ200M4,DSZSAF97-YEJ80M4,DSZSAF97-YEJ90M4,DSZSAF97-YS100M4,DSZSAF97-YS112M4,DSZSAF97-YS132M4,DSZSAF97-YS160M4,DSZSAF97-YS180M4,DSZSAF97-YS200M4,DSZSAF97-YS80M4,DSZSAF97-YS90M4,DSZSAF97-YVP100M4,DSZSAF97-YVP112M4,DSZSAF97-YVP132M4,DSZSAF97-YVP160M4,DSZSAF97-YVP180M4,DSZSAF97-YVP200M4,DSZSAF97-YVP80M4,DSZSAF97-YVP90M4,DSZSAF97-YVPEJ100M4,DSZSAF97-YVPEJ112M4,DSZSAF97-YVPEJ132M4,DSZSAF97-YVPEJ160M4,DSZSAF97-YVPEJ180M4,DSZSAF97-YVPEJ200M4,DSZSAF97-YVPEJ80M4,DSZSAF97-YVPEJ90M4,BSAF97-Y1.1KW,BSAF97-Y1.5KW,BSAF97-Y100M4,BSAF97-Y112M4,BSAF97-Y11KW,BSAF97-Y132M4,BSAF97-Y15KW,BSAF97-Y160M4,BSAF97-Y18.5KW,BSAF97-Y180M4,BSAF97-Y2.2KW,BSAF97-Y200M4,BSAF97-Y22KW,BSAF97-Y3KW,BSAF97-Y4KW,BSAF97-Y5.5KW,BSAF97-Y7.5KW,BSAF97-Y80M4,BSAF97-Y90M4,BSAF97-YEJ100M4,BSAF97-YEJ112M4,BSAF97-YEJ132M4,BSAF97-YEJ160M4,BSAF97-YEJ180M4,BSAF97-YEJ200M4,BSAF97-YEJ80M4,BSAF97-YEJ90M4,BSAF97-YS100M4,BSAF97-YS112M4,BSAF97-YS132M4,BSAF97-YS160M4,BSAF97-YS180M4,BSAF97-YS200M4,BSAF97-YS80M4,BSAF97-YS90M4,BSAF97-YVP100M4,BSAF97-YVP112M4,BSAF97-YVP132M4,BSAF97-YVP160M4,BSAF97-YVP180M4,BSAF97-YVP200M4,BSAF97-YVP80M4,BSAF97-YVP90M4,BSAF97-YVPEJ100M4,BSAF97-YVPEJ112M4,BSAF97-YVPEJ132M4,BSAF97-YVPEJ160M4,BSAF97-YVPEJ180M4,BSAF97-YVPEJ200M4,BSAF97-YVPEJ80M4,BSAF97-YVPEJ90M4,GSAF97-Y1.1KW,GSAF97-Y1.5KW,GSAF97-Y100M4,GSAF97-Y112M4,GSAF97-Y11KW,GSAF97-Y132M4,GSAF97-Y15KW,GSAF97-Y160M4,GSAF97-Y18.5KW,GSAF97-Y180M4,GSAF97-Y2.2KW,GSAF97-Y200M4,GSAF97-Y22KW,GSAF97-Y3KW,GSAF97-Y4KW,GSAF97-Y5.5KW,GSAF97-Y7.5KW,GSAF97-Y80M4,GSAF97-Y90M4,GSAF97-YEJ100M4,GSAF97-YEJ112M4,GSAF97-YEJ132M4,GSAF97-YEJ160M4,GSAF97-YEJ180M4,GSAF97-YEJ200M4,GSAF97-YEJ80M4,GSAF97-YEJ90M4,GSAF97-YS100M4,GSAF97-YS112M4,GSAF97-YS132M4,GSAF97-YS160M4,GSAF97-YS180M4,GSAF97-YS200M4,GSAF97-YS80M4,GSAF97-YS90M4,GSAF97-YVP100M4,GSAF97-YVP112M4,GSAF97-YVP132M4,GSAF97-YVP160M4,GSAF97-YVP180M4,GSAF97-YVP200M4,GSAF97-YVP80M4,GSAF97-YVP90M4,GSAF97-YVPEJ100M4,GSAF97-YVPEJ112M4,GSAF97-YVPEJ132M4,GSAF97-YVPEJ160M4,GSAF97-YVPEJ180M4,GSAF97-YVPEJ200M4,GSAF97-YVPEJ80M4,GSAF97-YVPEJ90M4,SCAF97-Y1.1KW,SCAF97-Y1.5KW,SCAF97-Y100M4,SCAF97-Y112M4,SCAF97-Y11KW,SCAF97-Y132M4,SCAF97-Y15KW,SCAF97-Y160M4,SCAF97-Y18.5KW,SCAF97-Y180M4,SCAF97-Y2.2KW,SCAF97-Y200M4,SCAF97-Y22KW,SCAF97-Y3KW,SCAF97-Y4KW,SCAF97-Y5.5KW,SCAF97-Y7.5KW,SCAF97-Y80M4,SCAF97-Y90M4,SCAF97-YEJ100M4,SCAF97-YEJ112M4,SCAF97-YEJ132M4,SCAF97-YEJ160M4,SCAF97-YEJ180M4,SCAF97-YEJ200M4,SCAF97-YEJ80M4,SCAF97-YEJ90M4,SCAF97-YS100M4,SCAF97-YS112M4,SCAF97-YS132M4,SCAF97-YS160M4,SCAF97-YS180M4,SCAF97-YS200M4,SCAF97-YS80M4,SCAF97-YS90M4,SCAF97-YVP100M4,SCAF97-YVP112M4,SCAF97-YVP132M4,SCAF97-YVP160M4,SCAF97-YVP180M4,SCAF97-YVP200M4,SCAF97-YVP80M4,SCAF97-YVP90M4,SCAF97-YVPEJ100M4,SCAF97-YVPEJ112M4,SCAF97-YVPEJ132M4,SCAF97-YVPEJ160M4,SCAF97-YVPEJ180M4,SCAF97-YVPEJ200M4,SCAF97-YVPEJ80M4,SCAF97-YVPEJ90M4,MTNAF97-Y1.1KW,MTNAF97-Y1.5KW,MTNAF97-Y100M4,MTNAF97-Y112M4,MTNAF97-Y11KW,MTNAF97-Y132M4,MTNAF97-Y15KW,MTNAF97-Y160M4,MTNAF97-Y18.5KW,MTNAF97-Y180M4,MTNAF97-Y2.2KW,MTNAF97-Y200M4,MTNAF97-Y22KW,MTNAF97-Y3KW,MTNAF97-Y4KW,MTNAF97-Y5.5KW,MTNAF97-Y7.5KW,MTNAF97-Y80M4,MTNAF97-Y90M4,MTNAF97-YEJ100M4,MTNAF97-YEJ112M4,MTNAF97-YEJ132M4,MTNAF97-YEJ160M4,MTNAF97-YEJ180M4,MTNAF97-YEJ200M4,MTNAF97-YEJ80M4,MTNAF97-YEJ90M4,MTNAF97-YS100M4,MTNAF97-YS112M4,MTNAF97-YS132M4,MTNAF97-YS160M4,MTNAF97-YS180M4,MTNAF97-YS200M4,MTNAF97-YS80M4,MTNAF97-YS90M4,MTNAF97-YVP100M4,MTNAF97-YVP112M4,MTNAF97-YVP132M4,MTNAF97-YVP160M4,MTNAF97-YVP180M4,MTNAF97-YVP200M4,MTNAF97-YVP80M4,MTNAF97-YVP90M4,MTNAF97-YVPEJ100M4,MTNAF97-YVPEJ112M4,MTNAF97-YVPEJ132M4,MTNAF97-YVPEJ160M4,MTNAF97-YVPEJ180M4,MTNAF97-YVPEJ200M4,MTNAF97-YVPEJ80M4,MTNAF97-YVPEJ90M4,WXSAF97-WSS1.1KW,WXSAF97-WSS1.5KW,WXSAF97-WSS100M4,WXSAF97-WSS112M4,WXSAF97-WSS11KW,WXSAF97-WSS132M4,WXSAF97-WSS15KW,WXSAF97-WSS160M4,WXSAF97-WSS18.5KW,WXSAF97-WSS180M4,WXSAF97-WSS2.2KW,WXSAF97-WSS200M4,WXSAF97-WSS22KW,WXSAF97-WSS3KW,WXSAF97-WSS4KW,WXSAF97-WSS5.5KW,WXSAF97-WSS7.5KW,WXSAF97-WSS80M4,WXSAF97-WSS90M4,WXSAF97-WSSB100M4,WXSAF97-WSSB112M4,WXSAF97-WSSB132M4,WXSAF97-WSSB160M4,WXSAF97-WSSB180M4,WXSAF97-WSSB200M4,WXSAF97-WSSB80M4,WXSAF97-WSSB90M4,WXSAF97-WSSVP132M4,WXSAF97-WSSVP160M4,WXSAF97-WSSVP180M4,WXSAF97-WSSVP200M4,WXSAF97-WSSVP80M4,WXSAF97-WSSVP90M4,WXSAF97-WSSVPB100M4,WXSAF97-WSSVPB112M4,WXSAF97-WSSVPB132M4,WXSAF97-WSSVPB160M4,WXSAF97-WSSVPB180M4,WXSAF97-WSSVPB200M4,WXSAF97-WSSVPB80M4,WXSAF97-WSSVPB90M4。伺服電機渦輪渦桿減速機
